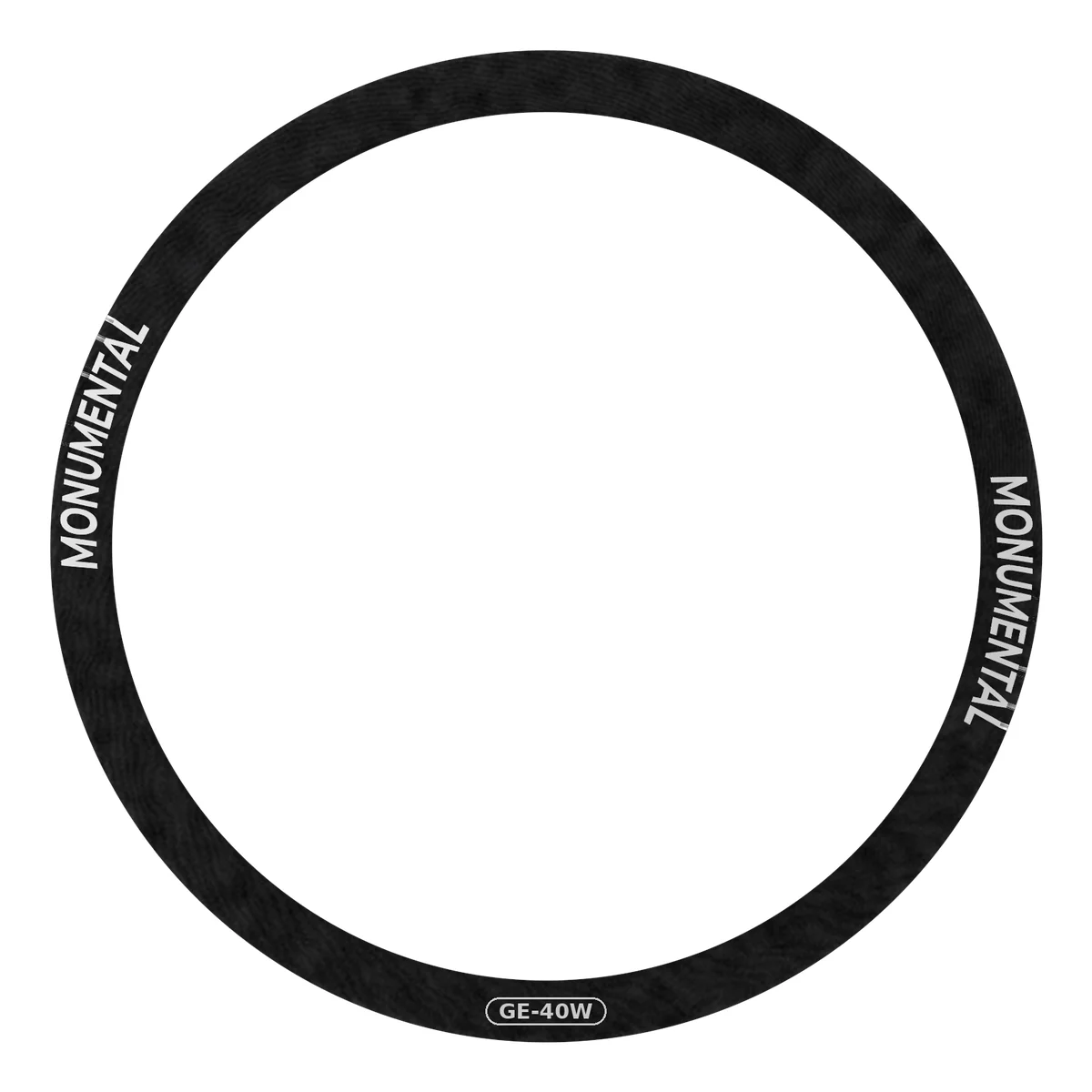

Gravel-Elite 40W
$1,495.00
Build-to-order — assembled to your spec by our factory partner. Lead time approximately 4-6 weeks from payment to shipment.
Available on backorder
- Tire type: Tubeless/Clincher
- Wheel size: 700C
- Rim profile: 40 mm depth · 38 mm outer / 32 mm inner
- Material: T700
- Bead: Hooked · Tubeless: Yes
- Hub: MCW Disc (DT Swiss Freehub Compatible)
- Spokes: CS1
- Brake interface: Disc, center-lock
- Warranty: 2 years
| Spokes | CS1 |
| Spoke Count | 24h front / 24h rear |
| Hub | MCW Disc (DT Swiss Freehub Compatible) |
| Freehub Body | SRAM XDR 12s (alt: Shimano HG 11/12s) |
| Front Axle | 12x100 mm thru-axle |
| Rear Axle | 12x142 mm thru-axle |
| Brake Type | Disc, center-lock |
| Max Spoke Tension | 130 kgf |
| Wheel Size | 700C |
| Rim Depth | 40 mm |
| Outer Width | 38 mm |
| Inner Width | 32 mm |
| ERD (Effective Rim Diameter) | 560 mm |
| Bead Type | Hooked |
| Tire Type | Tubeless/Clincher |
| Tubeless Ready | Yes |
| Material | T700 |
| Rim Weight | 430 g (per rim) |
Complete wheel weight depends on the specific hub, spoke, tape, and valve configuration of your build. Contact us for the exact weight on a specific build.
| Recommended Tire Size | 700×44-70C |
| Max Tire Pressure | 90 psi |
| Max Rider Weight | 120 kg |
