CX-Elite 22T
$1,495.00
Build-to-order — assembled to your spec by our factory partner. Lead time approximately 4-6 weeks from payment to shipment.
Available on backorder
- Tire type: Tubular
- Wheel size: 700C
- Rim profile: 22 mm depth · 28 mm outer / — inner
- Material: T700+T800
- Bead: — · Tubeless: Tubular only
- Hub: MCW Disc (DT Swiss Freehub Compatible)
- Spokes: CS1 (carbon, black, bladed)
- Brake interface: Disc, center-lock
- Warranty: 2 years
| Spokes | CS1 (carbon, black, bladed) |
| Spoke Count | 20h front / 20h rear |

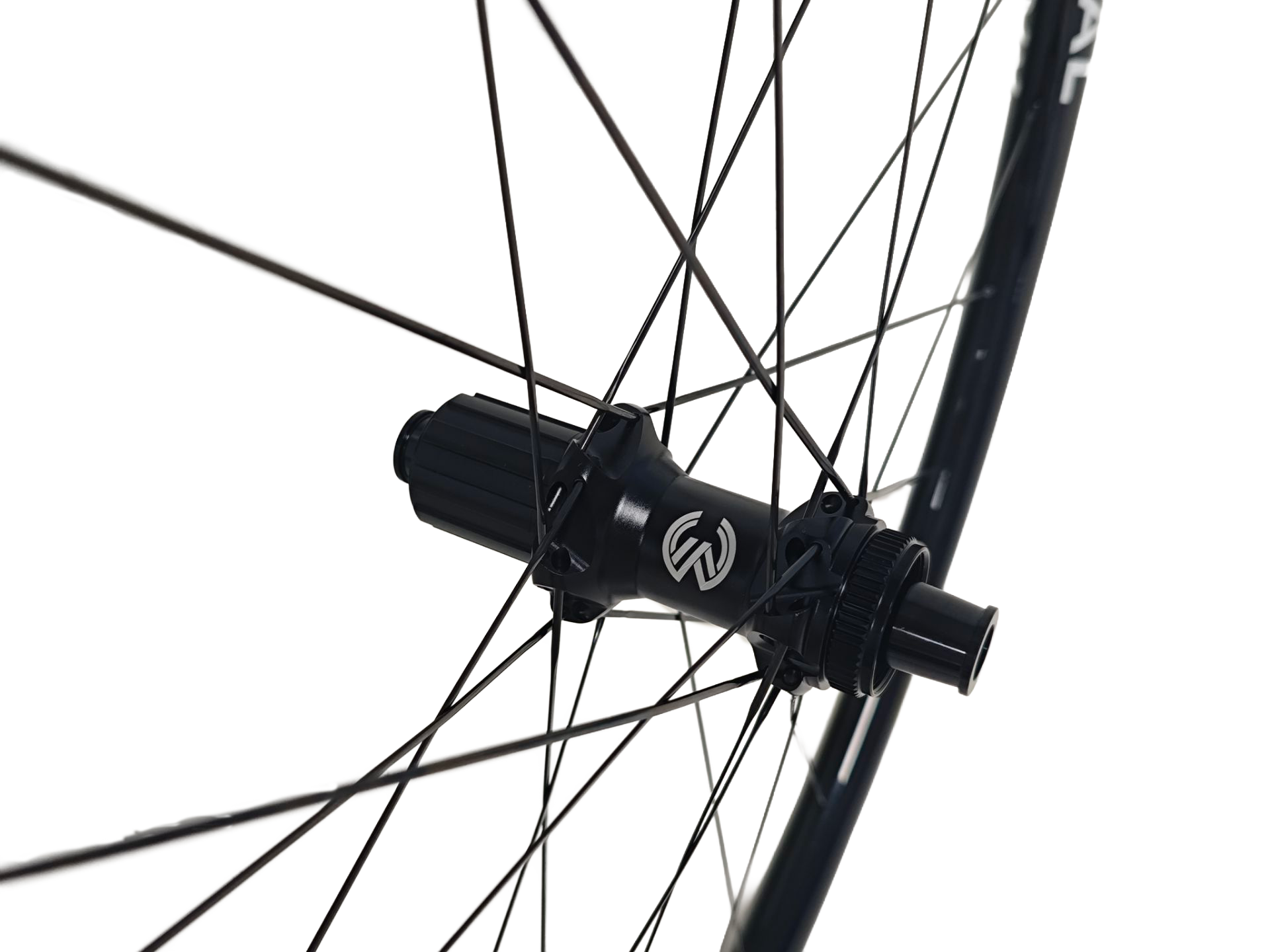

| Hub | MCW Disc (DT Swiss Freehub Compatible) |
| Freehub Body | SRAM XDR 12s (alt: Shimano HG 11/12s) |
| Front Axle | 12x100 mm thru-axle |
| Rear Axle | 12x142 mm thru-axle |
| Brake Type | Disc, center-lock |
| Max Spoke Tension | 130 kgf |
| Wheel Size | 700C |
| Rim Depth | 22 mm |
| Outer Width | 28 mm |
| ERD (Effective Rim Diameter) | 596 mm |
| Tire Type | Tubular |
| Tubeless Ready | Tubular only |
| Material | T700+T800 |
| Rim Weight | 300 g (per rim) |
Complete wheel weight depends on the specific hub, spoke, tape, and valve configuration of your build. Contact us for the exact weight on a specific build.
| Recommended Tire Size | 700×25-35C |
| Max Tire Pressure | 120 psi |
